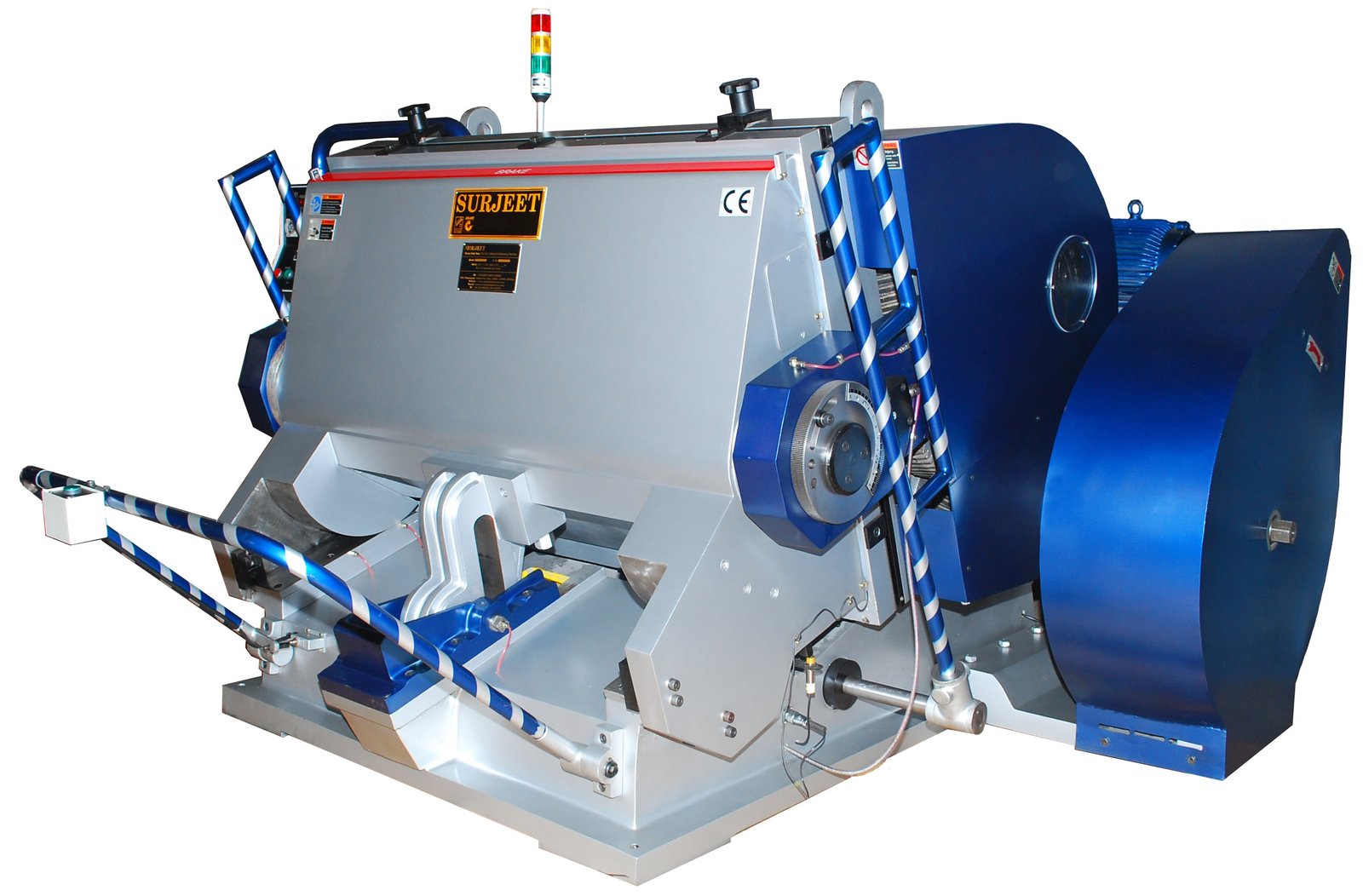

DieCutting Creasing Embossing Machine
SURJEET hand fed heavy duty platens are offered in a range of different Sizes to suit different applications and industries.
SURJEET heavy duty platen can also cut, crease and emboss different materials, such as: Fiberglass (For insulation), Vinyl (for cutting letters of display), Foam Rubber and Felt, Leather, Hardboard and Cork sheets, Plastic sheet, Polyurethane (for boxes), Linoleum etc.
SURJEET heavy duty platens are robust, high precision machines whose bed and platen are made of high class materials as the connecting rods. All machines are fully guarded to stringent standard to give maximum operator's safety while maintaining optimum operating efficiency
SURJEET heavy duty platens fulfill the most restrictive CE International standards
SURJEET Platens are provided with unique technology are
Stop Bar For Instant Stopping Of Machine
Foot Breaks For The Stopping Of Machine
Machine Operating Panel Box
Platen Center Support
Cover Full For Flywheel & V.belt
Impression Adjustment Independent For Each Side
Double- Flywheel for more force
Double Electromagnetic Clutch Break For Instant Break
Double Electronic Motors
Fully Automatic Lubrication System
Belt Adjustment Lever
Controlling Panel
Standard Equipments
Micro Type Impression Adjustment
Single Dwell Facility
Electromagnetic Clutch
Wraparound Safety Device And Trip Bar
Universal Chase Frame
Full Guard For Gears And Side Arms
Automatic Stroke Counter
Automatic Lubrication System
Service Accessory Kit
Punching Plate (one)
Infeed or Delivery Table (one)
| PLATEN SIZE | INSIDE CHASE SIZE | H.P REGUIRED (MOTOR) | IMPRESSIONS PER HOUR (APPROXIMATE) |
|---|---|---|---|
| 24x34 inches 610x863 mm | 22x32 inches 559x813 mm | 3 H.P. | 1600 |
| 29x40 inches 737x1016 mm | 25x37 inches 635x940 mm | 5 H.P. | 1300 |
| 35x47 inches 889x1194 mm | 32x44 inches 838x1092 mm | 5 H.P. | 1200 |
| 40x56 inches 1016x1422 mm | 37x53 inches 940x1346mm | 7.5 H.P. | 1000 |
| 45x65 inches 1143x1651 mm | 42x62 inches 1067x1575mm | 10 H.P. | 1000 |
| 53x72 inches 1321x1829 mm | 49x69 inches 1245x1753 mm | 10 H.P. | 900 |
| 55x75 inches 1397x1905 mm | 52x72 inches 1321x1828mm | 15 H.P. | 900 |
| 55x86 inches 1397x2184 mm | 51x82 inches 1321x2108mm | 15 H.P. | 800 |
| 60x86 inches 1524x2184mm | 56x83 inches 1447x2108mm | 20 H.P. | 800 |
| 55x110 inches 1397x2794 mm | 51x106 inches 1321x2718 mm | 15H.P.+15H.P. | 700 |
| 65x110 inches 1651x2794mm | 61x106 inches 1575x2718mm | 15H.P.+15H.P. | 700 |
| 70x120 inches 1778x3048mm | 66x116 inches 1676x2946mm | 15H.P.+15H.P. | 700 |
